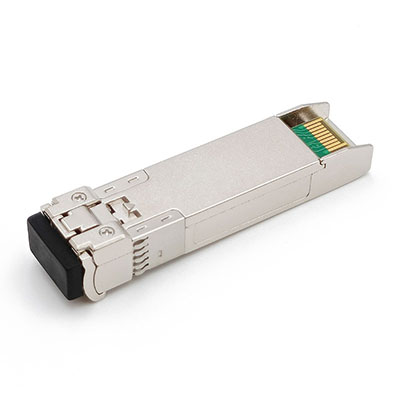

6G SDI SFP+

Gigaopto 6Gbps Video SFP Series includes 6G Video Transceiver, 6G Video Receiver and 6G Video Transmitter. It is designed to transmit/receive data rates from 27Mbps to 5.94Gbps and compliant with SMPTE259M, SMPTE 344M, SMPTE 292M, SMPTE 424M and ST-2081 serial rates. It is suitable for high-definition digital broadcasting applications.
Ordering Information
Features
Application
Part No.ProductData Rate(bps)       Wavelength(nm)Reach             ConnectorTemp.Pinout
6G Video SFP Transceiver
GTS-L1360-10Dx6G SDI SFP TX+RX0.27~5.94G131010kmDual LC0~70; -40~85MSA
GTS-L1360-20Dx6G SDI SFP TX+RX0.27~5.94G131020kmDual LC0~70; -40~85MSA
GTS-B3460-10Dx6G SDI BIDI SFP TX+RX0.27~5.94GTX1490/RX131010kmBIDI LC0~70; -40~85MSA
GTS-B4360-10Dx6G SDI BIDI SFP TX+RX0.27~5.94GTX1310/RX149010kmBIDI LC0~70; -40~85MSA

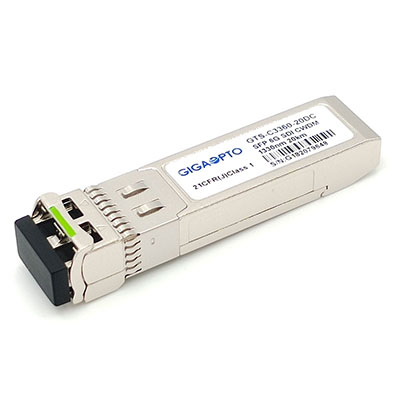

GTS-Cxx60-10DC6G SDI SFP CWDM TX+RX0.27~5.94G1270~1450 CWDM10kmDual LC0~70MSA
6G Video SFP Transmitter

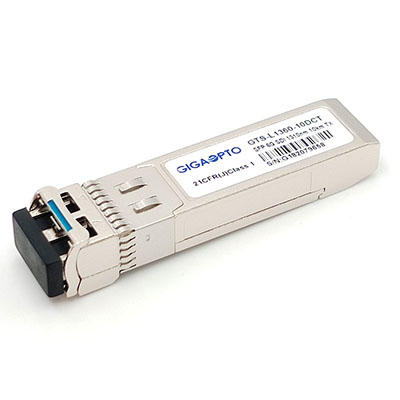

GTS-L1360-10DxT6G SDI SFP Single TX0.27~5.94G131010kmSingle LC0~70; -40~85MSA
GTS-L1360-20DxT6G SDI SFP Single TX0.27~5.94G131020kmSingle LC0~70; -40~85MSA
GTS-L1360-10DxTN6G SDI SFP Single TX0.27~5.94G131010kmSingle LC0~70; -40~85Non-MSA
GTS-L1360-20DxTN6G SDI SFP Single TX0.27~5.94G131020kmSingle LC0~70; -40~85Non-MSA
GTS-Cxx60-10DCT6G SDI SFP Single TX0.27~5.94G1270~1450 CWDM10kmSingle LC0~70MSA
GTS-Cxx60-10DCTN6G SDI SFP Single TX0.27~5.94G1270~1450 CWDM10kmSingle LC0~70Non-MSA
GTS-L3360-10DxTT6G SDI SFP Dual TX0.27~5.94G131010kmDual LC0~70; -40~85Non-MSA
GTS-L3360-20DxTT6G SDI SFP Dual TX0.27~5.94G131020kmDual LC0~70; -40~85Non-MSA
GTS-B4360-10DxTT6G SDI BIDI SFP Dual TX0.27~5.94GTX1490/TX131010kmBIDI LC0~70; -40~85Non-MSA
6G Video SFP Receiver

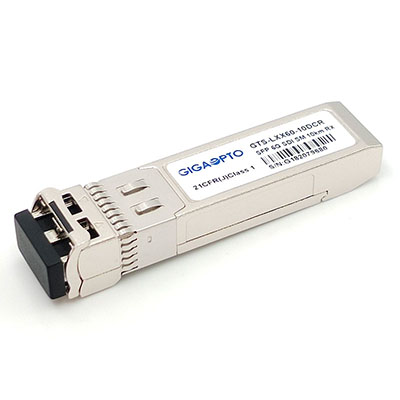

GTS-LXX60-10DxR6G SDI SFP Single RX0.27~5.94G1270~161010kmSingle LC0~70; -40~85MSA
GTS-LXX60-20DxR6G SDI SFP Single RX0.27~5.94G1270~161020kmSingle LC0~70; -40~85MSA
GTS-LXX60-10DxRN6G SDI SFP Single RX0.27~5.94G1270~161010kmSingle LC0~70; -40~85Non-MSA
GTS-LXX60-20DxRN6G SDI SFP Single RX0.27~5.94G1270~161020kmSingle LC0~70; -40~85Non-MSA
GTS-LXX60-10DxRR6G SDI SFP Dual RX0.27~5.94G131010kmDual LC0~70; -40~85Non-MSA
GTS-LXX60-20DxRR6G SDI SFP Dual RX0.27~5.94G131020kmDual LC0~70; -40~85Non-MSA
GTS-B4360-10DxRR6G SDI BIDI SFP Dual RX0.27~5.94GRX1490/RX131010kmBIDI LC0~70; -40~85Non-MSA

Features

  • SFP MSA package with LC connector
  • +3.3V single Power Supply
  • Transmission Distance from 2km to 80km
  • Compliant with SMPTE standard
  • Low power consumption
  • Operating Case Temperature: 0~+70℃ or -40~+85℃
  • Very low EMI and excellent ESD protection
  • Class 1 FDA and IEC60825-1 Laser Safety
  • RoHS Compliant

Application

  • SFP MSA package with LC connector
  • +3.3V single power supply
  • Compliant with SMPTE standard
  • Low power consumption
  • Operating case temperature: 0~+70℃ or -40~+85℃
  • Very low EMI and excellent ESD protection
  • Class 1 FDA and IEC60825-1 Laser Safety
  • RoHS Compliant
