4G FC SFP

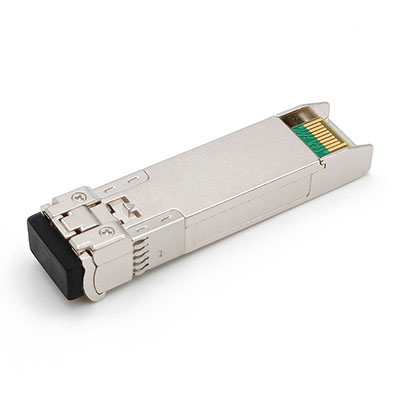

Gigaopto 4G series is small form factor pluggable module for 4.25G/2.125H/1.06G Fibre Channel applications in storage area networks.It is with the SFP 20-pin connector to allow hot plug capability. All the transceivers comply with the SFP MSA, SFF-8472, CE, FCC, RoHS, and corresponding industry standards.

Ordering Information

Features

Application

Part No.	Product	Data Rate(bps)	Wavelength	Media	Reach	Connector	Temp.
GTS-L0842-02Dx	4G FC SX	4.25G	850nm	MMF	150m	LC	0~70; -40~85
GTS-L1342-10Dx	4G FC LX	4.25G	1310nm	SMF	10km	LC	0~70; -40~85
GTS-L1342-40Dx	4G FC EX 40	4.25G	1310nm	SMF	40km	LC	0~70; -40~85
GTS-L1542-40Dx	4G FC EX	4.25G	1550nm	SMF	40km	LC	0~70; -40~85
GTS-L1542-80Dx	4G FC ZX	4.25G	1550nm	SMF	80km	LC	0~70; -40~85

Features

Hot-Pluggable SFP Footprint Duplex LC Connector
Operating Data Rate up to 4.25Gbps
Links distance reach up to 80km
Single 3.3V Power Supply and LVTTL Logic Interface
Interface Class 1 FDA and IEC60825-1 Laser Safety Compliant
Operating Case Temperature Standard: 0C~+70℃ and Industrial: -40C~+85℃
Compliant with SFP MSA Specification
SFF-8472 Digital Diagnostic Function
RoHs compliant and lead free

Application

Multi Rate Fiber Channel
1000Base Ethernet
SONET / SDH Equipment Interconnect
Storage Area Network(SAN)
Other Optical Link
