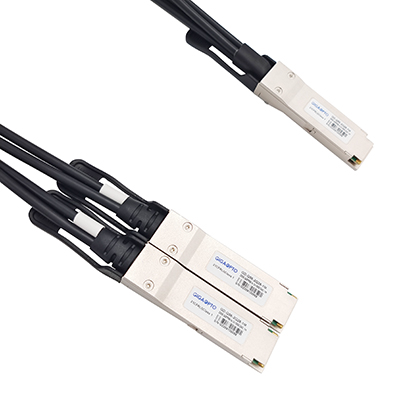

200G DAC

The Gigaopto 200G DAC series provides high-performance, lower cost,shorter transition time solutions for short-distance 200G Ethernet connectivity It has the characteristics of low power consumption, small size and high reliability, which is helpful for data center to increase capacity, improve ports density and reduce power consumption. It is mainly used in data center interconnection.
Ordering Information
Features
Application
Part No.ProductData Rate(bps)ReachWire GaugeOthersTemp.
GD-QSFP56-xM200G QSFP56 DAC200G0.5~3mAWG 30/28/26LSZH0~70
GD-Q56-2Q56-xM200G QSFP56 to 2x100G QSFP56 DAC200G to 2x100G0.5~3mAWG 30/28/26LSZH0~70
GD-Q56-4S56-xM200G QSFP56 to 4x50G SFP56 DAC200G to 4x50G0.5~3mAWG 30/26LSZH0~70
GD-QSFP28DD-xM200G QSFP28-DD DAC200G0.5~3mAWG 30/28/26LSZH0~70
GD-Q28DD-2Q28-xM200G QSFP28-DD to 2xQSFP28 DAC200G to 2x100G0.5~3mAWG 30/26LSZH0~70

Features

  • Hot pluggable QSFP-DD/QSFP56 form factor
  • Supports 212.5Gb/s aggregate bit rate
  • With High reliability and Low power consumption
  • Single 3.3V Power Supply
  • 26 AWG ~30 AWG support up to 3m length
  • Straight and break out assembly configurations available
  • Customized cable braid termination limits EMI radiation
  • RoHS compliance
  • Operating temperature range: 0~70°C(Commercial)

Application

  • DATACOM
