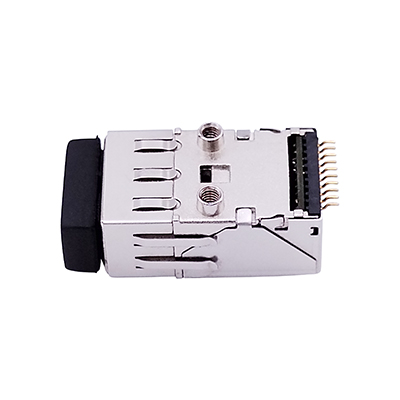

10G SFP+ Endurance

The series is a range of compact transceiver modules designed to be rugged and therefore ideal for industrial and military applications. They feature a wide operating temperature range, a metal housing that minimizes the effects of electromagnetic interference, two through-hole mounting posts for stability under shock and vibration conditions, and pins that are soldered directly to the printed circuit board (PCB) to ensure continuous connection. Endurance modules are available with conformal coatings to increase reliability in harsh environments. They are made to Telcordian and military standards.
Ordering Information
Features
Application
Part No.ProductData RateWavelengthMediaReachConnectorTemp.
GTE-L0896-02DICompact Endurance10G850nmMMF300mLC-40~85
GTE-L1396-10DICompact Endurance10G1310nmSMF10kmLC-40~85

Features

  • Supports up to 10 Gb/s optical data links
  • Short-Reach 850nm VCSEL Mutli-mode or Long-Reach 1310nm DFB Single-mode available
  • Multi-rate versions available
  • Compact form-factor: Half the size of SFF transceivers
  • Built-in digital diagnostic functions
  • Duplex LC optical connection
  • Single 3.3V power supply
  • Interoperable with standard SFP and SFP+ optical transceivers
  • Meets applicable requirements for Gigabit Ethernet, 10 Gigabit Ethernet, and Fibre Channel

Application

  • Protocols: 10 Gigabit Ethernet, 1 Gigabit Ethernet, proprietary high-speed links
  • Wireless back-haul and front-haul
  • Communications for factory automation, power distribution, rail
  • Military communication links Datacom
