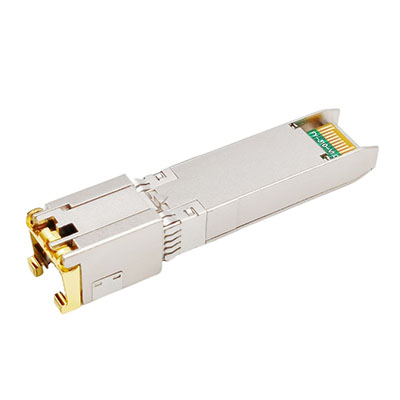

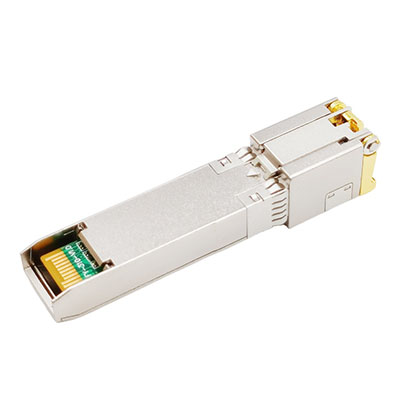

10G SFP+ Copper

Gigaopto’s 10GBASE-T SFP+ Copper transceiver provides 10GBase-T throughput up to 30m/80m over cat6a/cat7 copper cable via RJ-45 connector. It is compliant with the Multi-Source Agreement (MSA) and 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T standards as specified in IEEE STD 802.3an, 802.3ab and 802.3au. The 10G copper SFP+ transceiver allows IT designers and data center professionals to extend the distance of 10GbE Ethernet links over an existing copper cabling infrastructure. Each SFP+ copper transceiver module is individually tested to be used on a series of switches, routers, servers, network interface card (NICs) etc. Featuring low power consumption, this easy to install, hot swappable 10G SFP+ transceiver is ideal for enterprise networking for LAN applications and different other networking places using copper connections.
Ordering Information
Features
Application
Part No.ProductData Rate(bps)IC BrandIC PN.ReachConnectorTemp.
GTS-T0096-03C10G Copper SFP+10GMarvell88X331030mRJ-450~70
GTS-T0096-03I10G Copper SFP+10GBroadcomBCM84891L30mRJ-45-40~85
GTS-T0096-03CA10G Copper SFP+1G, 2.5G, 5G, 10GMarvellAQR113C30mRJ-450~70
GTS-T0096-08C10G Copper SFP+10GBroadcomBCM84891L80mRJ-450~70

Features

  • Hot-pluggable SFP+ Footprint
  • Compact RJ-45 interface
  • Compliant with SFP+MSA
  • Support 10GBASE-T Operation in Host Systems and auto-negotiation to lower speed.
  • Support 30m/80m transmission distance
  • Fully Metallic Enclosure for Low EMI
  • Single +3.3V power supply
  • Power consumption<2.4W
  • Operating temperature range: 0~70°C(Commercial) /-40~85°C(industrial)
  • RoHS compliant and lead-free

Application

  • Ethernet over category 6a/7 twisted-pair copper cabling
  • Enterprise data centers and server consolidations
  • Low-cost campus backbones
