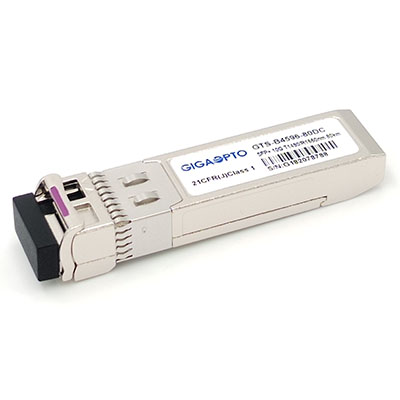

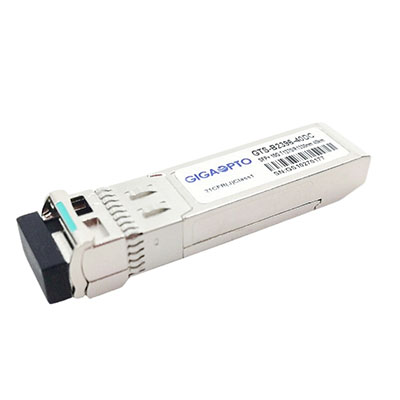

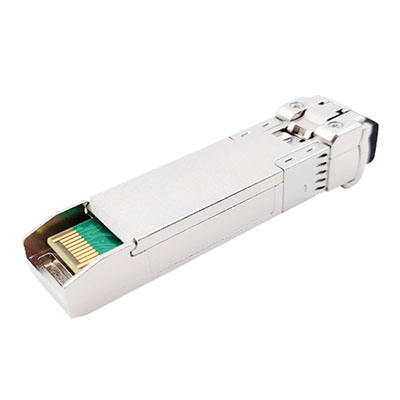

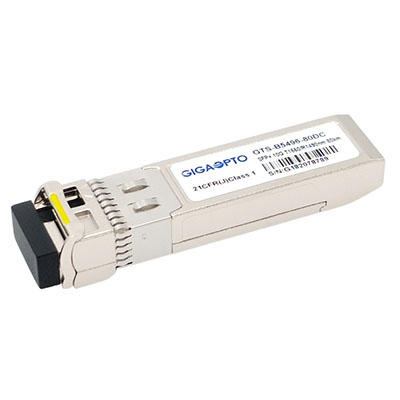

10G BIDI SFP+

Gigaopto BIDI SFP+ optical transceiver modules are designed for bi-directional 10G serial optical data communications such as IEEE 802.3ae 10GBASE-BX by using 1330nm/1270nm/1490nm transmitter and 1270nm/1330nm/1550nm receiver,supporting a variety of transmission distances from 10km to 100km over single strand SMF with simplex LC optical interface. The optical transceiver is RoHS compliant.
Ordering Information
Features
Application
Part No.ProductData Rate(bps)Wavelength(nm)MediaReachConnectorTemp.
GTS-B(S)2396-10Dx10G SFP+ BIDI LR10.3125GTX1270/RX1330SMF10kmLC/SC0~70; -40~85
GTS-B(S)3296-10Dx10G SFP+ BIDI LR10.3125GTX1330/RX1270SMF10kmLC/SC0~70; -40~85
GTS-B(S)2396-20Dx10G SFP+ BIDI eLR10.3125GTX1270/RX1330SMF20kmLC/SC0~70; -40~85
GTS-B(S)3296-20Dx10G SFP+ BIDI eLR10.3125GTX1330/RX1270SMF20kmLC/SC0~70; -40~85
GTS-B(S)2396-40Dx10G SFP+ BIDI ER10.3125GTX1270/RX1330SMF40kmLC/SC0~70; -40~85
GTS-B(S)3296-40Dx10G SFP+ BIDI ER10.3125GTX1330/RX1270SMF40kmLC/SC0~70; -40~85
GTS-B(S)2396-60Dx10G SFP+ BIDI eER10.3125GTX1270/RX1330SMF60kmLC/SC0~70; -40~85
GTS-B(S)3296-60Dx10G SFP+ BIDI eER10.3125GTX1330/RX1270SMF60kmLC/SC0~70; -40~85
GTS-B(S)4596-80Dx10G SFP+ BIDI ZR10.3125GTX1490/RX1550SMF80kmLC/SC0~70; -40~85
GTS-B(S)5496-80Dx10G SFP+ BIDI ZR10.3125GTX1550/RX1490SMF80kmLC/SC0~70; -40~85
GTS-B4596-A0DC10G SFP+ BIDI ZR10010.3125GTX1490/RX1550SMF100kmLC0~70
GTS-B5496-A0DC10G SFP+ BIDI ZR10010.3125GTX1550/RX1490SMF100kmLC0~70

Features

  • One Fiber Bi-Di SFP+ Optical Transceiver
  • Up to 11.3 Gbps Bi-directional Data Links
  • Fully Compliant with SFP+ MSA
  • Compliant to IEEE 802.3ae 10GBASE-BX
  • SFF-8472 Digital Diagnostic Function
  • Simplex LC or SC optical interface
  • Internal integrated 1270nm/1330nm, 1490/1550nm wavelength division multiplexer
  • +3.3 V Power Supply
  • low power consumption
  • Link transmission distances from 10Km to 100Km
  • Case temperature range: 0~70°C(standard) /-40~85°C(industrial)
  • RoHS Compliant and lead free

Application

  • 10G Ethernet
  • 10G Fibre Channel
  • SDH/SONET
  • Other links
