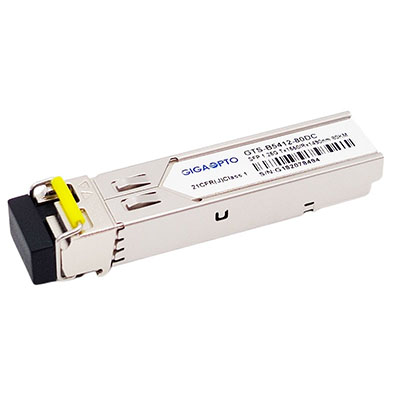

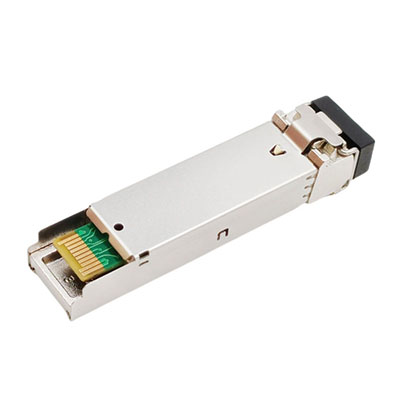

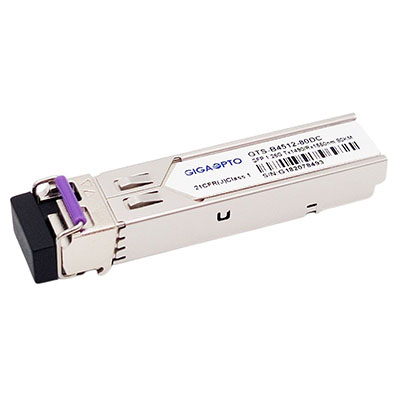

1.25G BIDI SFP

Gigaopto’s single fiber SFP BIDI series optical transceivers includes 155Mbps, 622Mbps,1.25Gbps, 2.5Gbps, and 3.07Gbps, supporting a variety of transmission distances from 2km to 180km with a single LC or SC optical interface.
They are suitable for Fast Ethernet, Gigabit Ethernet, SONET, SDH, and ATM applications. This SFP SC LC transceiver supports DDM/DOM optical diagnostics that allow access to real-time operating parameters.
Ordering Information
Features
Application
Part No.ProductData Rate(bps)Wavelength(nm)MediaReachConnectorTemp.
GTS-B(S)3412-03DxSFP 1G BIDI1.25GTX1310/RX1490SMF3kmLC/SC0~70; -40~85
GTS-B(S)4312-03DxSFP 1G BIDI1.25GTX1490/RX1310SMF3kmLC/SC0~70; -40~85
GTS-B(S)3412-10DxSFP 1G BIDI1.25GTX1310/RX1490SMF10kmLC/SC0~70; -40~85
GTS-B(S)4312-10DxSFP 1G BIDI1.25GTX1490/RX1310SMF10kmLC/SC0~70; -40~85
GTS-B(S)3412-20DxSFP 1G BIDI1.25GTX1310/RX1490SMF20kmLC/SC0~70; -40~85
GTS-B(S)4312-20DxSFP 1G BIDI1.25GTX1490/RX1310SMF20kmLC/SC0~70; -40~85
GTS-B(S)3412-40DxSFP 1G BIDI1.25GTX1310/RX1490SMF40kmLC/SC0~70; -40~85
GTS-B(S)4312-40DxSFP 1G BIDI1.25GTX1490/RX1310SMF40kmLC/SC0~70; -40~85
GTS-B(S)3512-03DxSFP 1G BIDI1.25GTX1310/RX1550SMF3kmLC/SC0~70; -40~85
GTS-B(S)5312-03DxSFP 1G BIDI1.25GTX1550/RX1310SMF3kmLC/SC0~70; -40~85
GTS-B(S)3512-10DxSFP 1G BIDI1.25GTX1310/RX1550SMF10kmLC/SC0~70; -40~85
GTS-B(S)5312-10DxSFP 1G BIDI1.25GTX1550/RX1310SMF10kmLC/SC0~70; -40~85
GTS-B(S)3512-20DxSFP 1G BIDI1.25GTX1310/RX1550SMF20kmLC/SC0~70; -40~85
GTS-B(S)5312-20DxSFP 1G BIDI1.25GTX1550/RX1310SMF20kmLC/SC0~70; -40~85
GTS-B(S)3512-40DxSFP 1G BIDI1.25GTX1310/RX1550SMF40kmLC/SC0~70; -40~85
GTS-B(S)5312-40DxSFP 1G BIDI1.25GTX1550/RX1310SMF40kmLC/SC0~70; -40~85
GTS-B(S)3512-80DxSFP 1G BIDI1.25GTX1310/RX1550SMF80kmLC/SC0~70; -40~85
GTS-B(S)5312-80DxSFP 1G BIDI1.25GTX1550/RX1310SMF80kmLC/SC0~70; -40~85
GTS-B(S)4512-80DxSFP 1G BIDI1.25GTX1490/RX1550SMF80kmLC/SC0~70; -40~85
GTS-B(S)5412-80DxSFP 1G BIDI1.25GTX1550/RX1490SMF80kmLC/SC0~70; -40~85
GTS-B(S)4512-A0DxSFP 1G BIDI1.25GTX1490/RX1550SMF100kmLC/SC0~70; -40~85
GTS-B(S)5412-A0DxSFP 1G BIDI1.25GTX1550/RX1490SMF100kmLC/SC0~70; -40~85
GTS-B(S)4512-**CxD*SFP 1G BIDI1.25GTX1490/RX1550SMF120kmLC/SC0~70; -40~85
GTS-B(S)5412-C0DxSFP 1G BIDI1.25GTX1550/RX1490SMF120kmLC/SC0~70; -40~85
GTS-B(S)4512-F0DxSFP 1G BIDI1.25GTX1490/RX1550SMF160kmLC/SC0~70; -40~85
GTS-B(S)5412-F0DxSFP 1G BIDI1.25GTX1550/RX1490SMF160kmLC/SC0~70; -40~85
GTS-B(S)4512-G0DxSFP 1G BIDI1.25GTX1490/RX1550SMF180kmLC/SC0~70; -40~85
GTS-B(S)5412-G0DxSFP 1G BIDI1.25GTX1550/RX1490SMF180kmLC/SC0~70; -40~85

Features

  • One fiber bi-directional optical SFP transceiver module
  • SFP MSA package with LC or SC connector
  • +3.3V single power supply
  • Digital diagnostic monitoring function implemented
  • Transmission distance from 3km to 180km
  • Low power consumption
  • Operating case temperature: 0°C to 70°C or -40°C to 85°C
  • Very low EMI and excellent ESD protection
  • Class 1 FDA and IEC60825-1 Laser Safety
  • RoHS Compliant

Application

  • SONET SDH and ATM
  • Gigabit Ethernet
  • WDM Fast Ethernet
  • Other Optical Links
