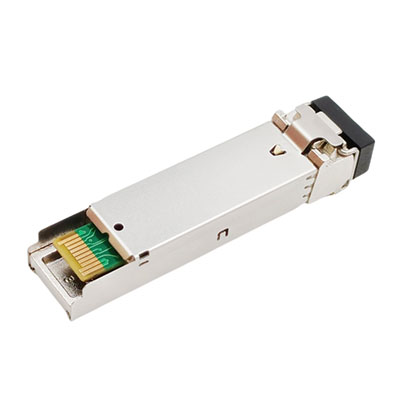

0-2M RS232 SFP

This transceiver module is designed for RS-232 / RS-422 / RS-485 serial data transmission It is with the SFP 20-pin connector to allow hot plug capability. All the transceivers comply with the SFP MSA, SFF-8472, CE, FCC, RoHS, and corresponding industry standards.

Ordering Information

Features

Application

Part No.	Product	Data Rate(bps)	Wavelength	Media	Reach	Connector	Temp.
GTS-L1300-10x	RS232 SFP	0~2M	1310nm	SMF	10km	LC	0~70; -40~85

Features

Hot-Pluggable SFP Footprint Duplex LC Connector
RS-232 application
Single 3.3V Power Supply and LVTTL Logic Interface
Interface Class 1 FDA and IEC60825-1 Laser Safety Compliant
Operating Case Temperature Standard: 0℃~+70℃ and Industrial: -40℃~+85℃
Compliant with SFP MSA Specification
SFF-8472 Digital Diagnostic Function
RoHs compliant and lead free

Application

RS-232 / RS-422 / RS-485
